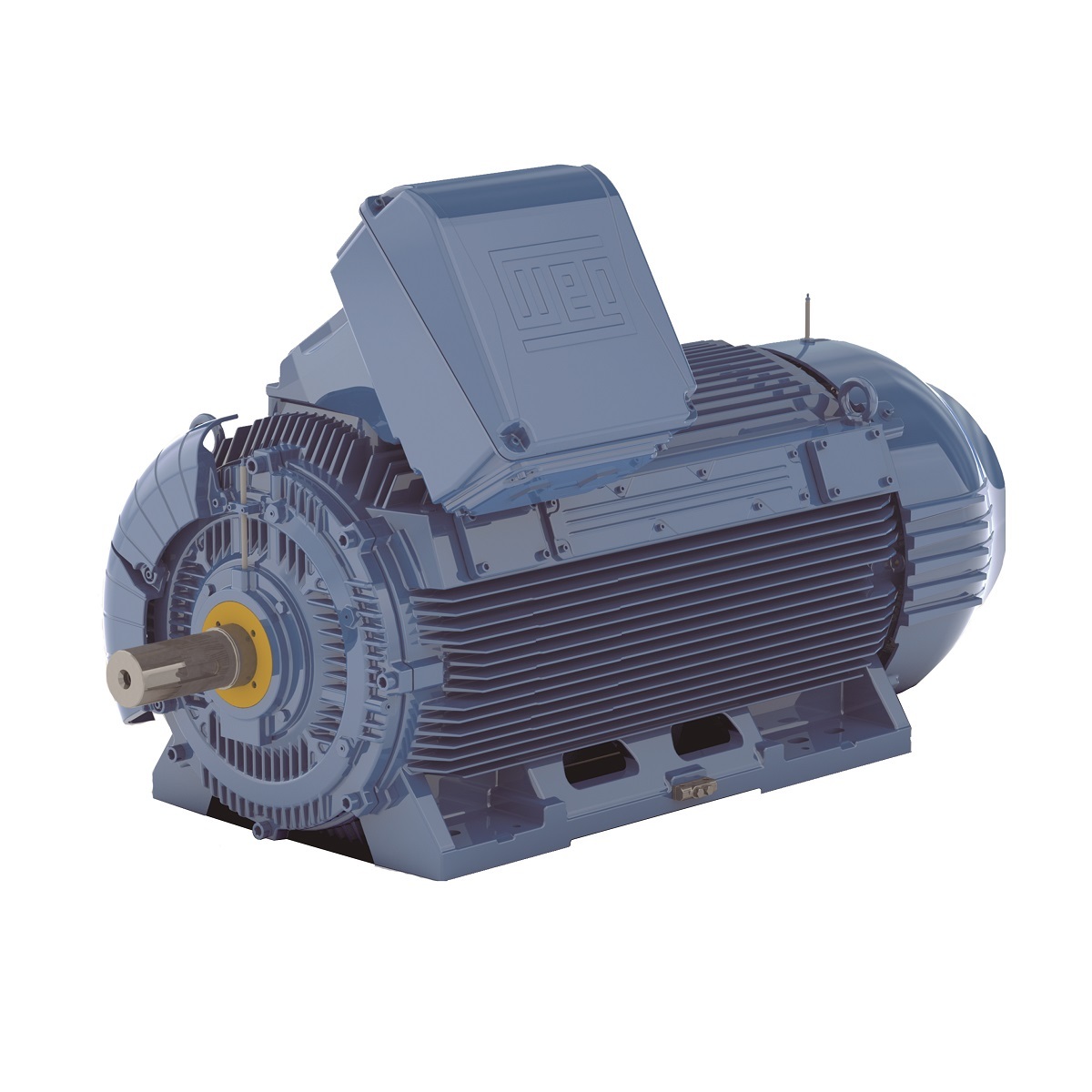

W51 HD
With cast iron frame, efficiency level up to IE4, frame from 315 up to 450, the W51 HD motors have High Power Density technology and are compact with various options available. Improved performance and greater durability with quicker delivery times.
Опис
Standards features
- Output: 132 to 1.400 kW (175 to 1900 cv)
- Number of poles: 2 to 12 poles
- Frame: IEC 315 to 450 (NEMA 50 to 70)
- Frequency: 50 or 60 Hz
- Voltage: 380 to 11.000 V
- Mounting: Horizontal
- Enclosure: IC411 (TEFC)
- Degree of Protection: IP55
- Starting Method: Direct On Line
- Bearings types: Sleeve bearings or ball bearings
- Thermal protection: RTD Pt-100, two per phase and RTD Pt-100, one per bearing
- Space heater
- Insulation system VPI
- Painting plan: ISO C4 Medium
Optionals
- Mounting: Vertical
- Enclosure: IC416 (TEBC)
- Degree of Protection: IP66
- Starting Method: VFD
- Protection against voltage surge
- Vibration sensor
- Grounding brush
